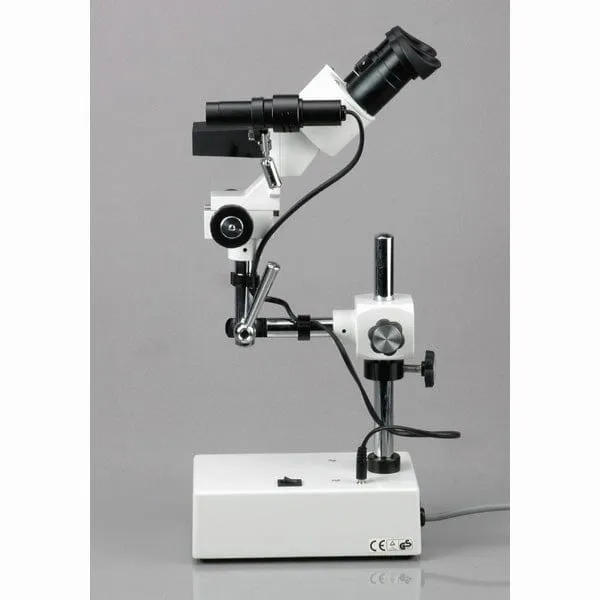

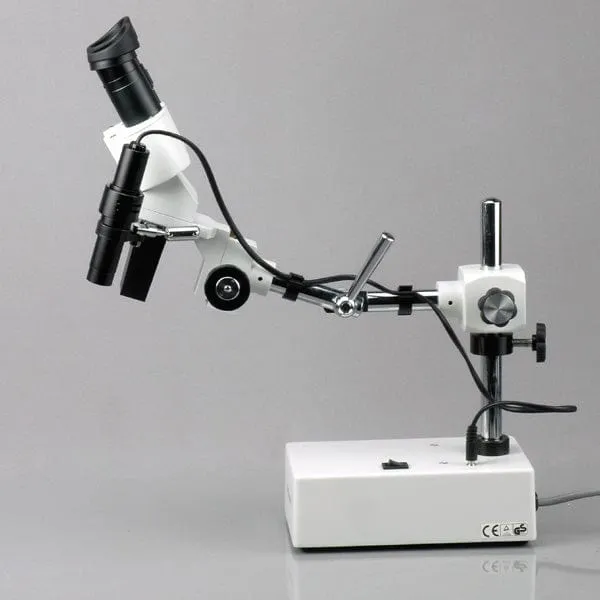

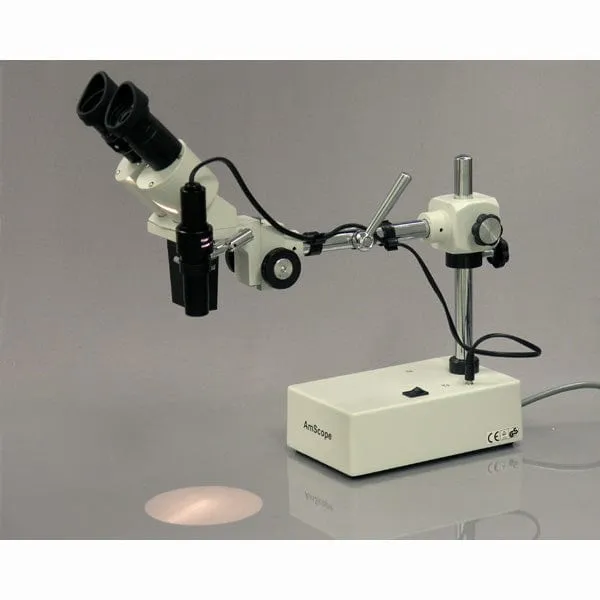

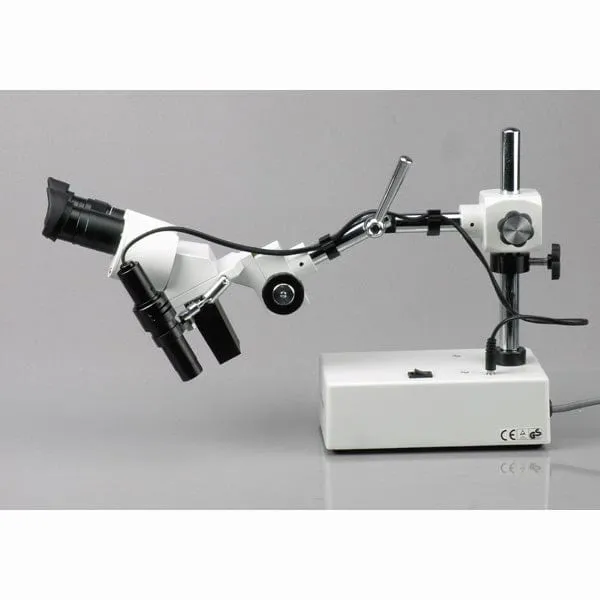

This is a binocular 20X & 40X stereo microscope on boom-arm stand, providing clear sharp images. It comes with a binocular head, widefield eyepieces, an incident light, and a boom-arm stand, and a 640x480 pixel digital camera. The 45 degree inclined eye-tubes and rubber eye-guards ensure an easy observation. The boom-arm stand allows you to turn the microscope head around two different axes (X and Z). This microscope offers high resolution, widefield of view and large working distance (6"). The incident light shines down onto objects for the observation of surface details and fine structures.

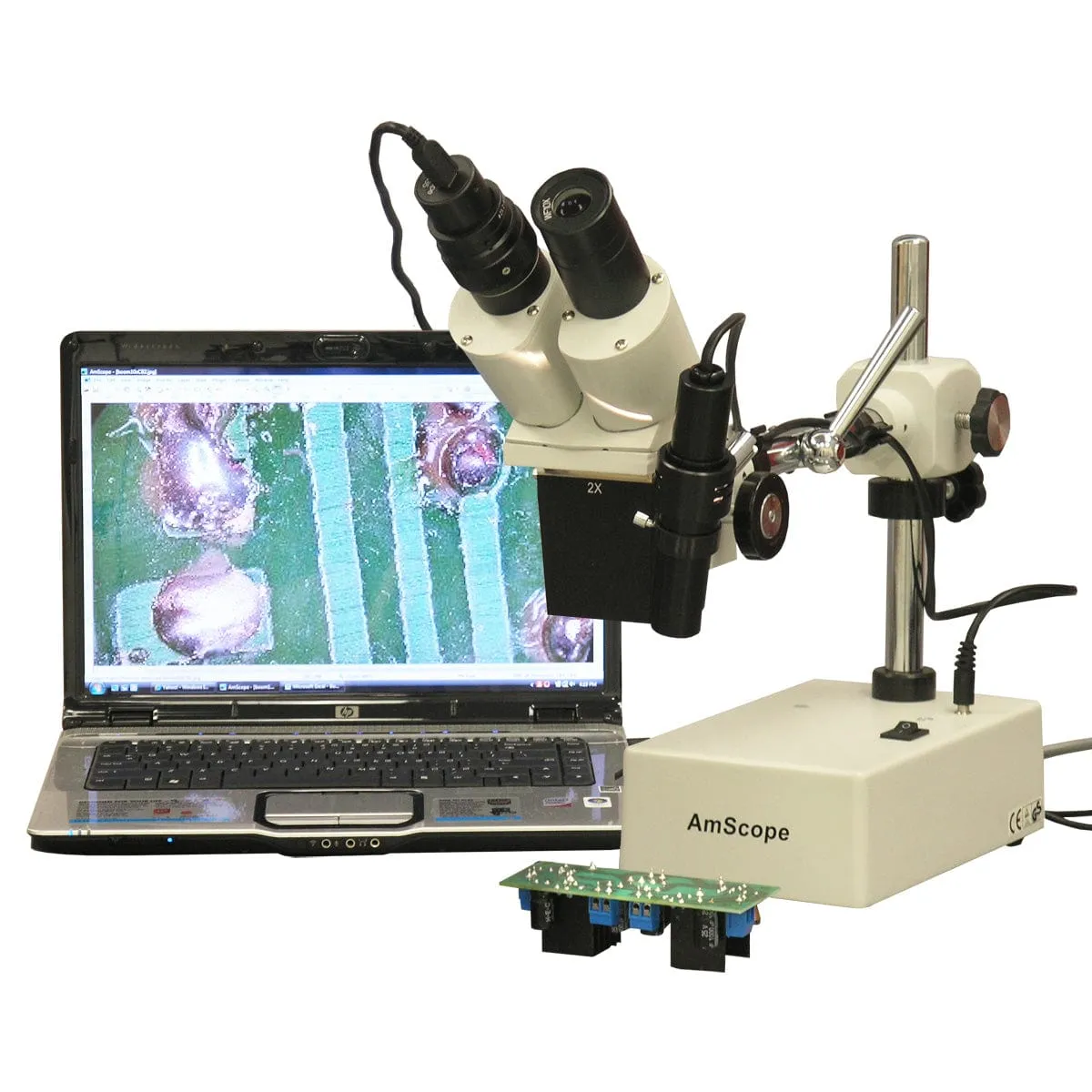

The digital camera captures still images and video, and allows you to view a live stream on your PC. The included software for Windows offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. On Mac computers, the camera can be used as a driverless imaging device, compatible with various applications, such as ProScope and Photo Booth.

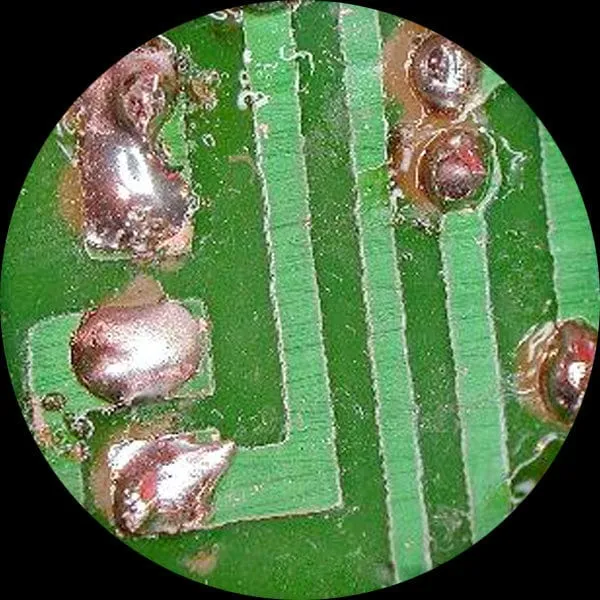

This microscope is perfect for circuit board repairing, soldering and dental applications. It is an ideal instrument for dentists, gemologists, collectors and anyone in semiconductor and/or electronic industry. It comes with first-class quality and affordable price.
Features :
- 20X-40X Stereo Magnification Powers
- Versatile Boom-arm Stand Covering Large Working Area
- 6" Large Working Distance
- High Resolution with Great Flatness and Contrast
- Erect Sharp Stereo Images over a SUPER Widefield of View.
- Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
- Crystal Clear Original True Color Images
- 45 Degree Inclined Binocular Head with Widefield Eyepieces
- Adjustable Interpupillary Distance (50 mm - 77 mm)
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- Cast Steel Stand Finished with Stain Resistant Enamel
- All Metal Mechanical Components
- Rubber Eye-guards Included
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Manufacturer Warranty
Specifications :
- Head: 45 degree inclined binocular
- Eyepiece: 30.5mm widefield WF10X and WF20X
- Objective: 2X
- Diopter Adjustment: /-5dp
- Interpupillary Distance: 2-0" - 2-15/16"(50-77mm)
- Working Distance: 6" (152mm)
- Illumination: 12V/10W tungsten bulb
- Power Supply: 110V/60Hz
- 6" arm (overall length: 12"), 11.5" high pillar, 7.5"x5.5"x2.5" steel base.
- Accessories: eye-guards

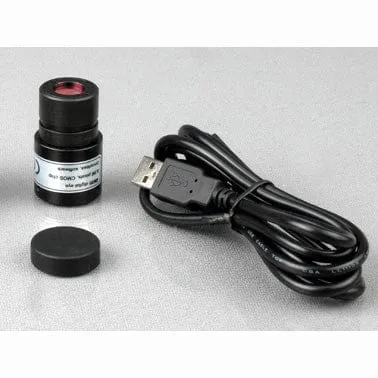

Camera Specifications:
- Sensor: Aptina
- Sensor Type: CMOS
- Sensor Size: 3.58x2.69mm
- Pixel Size: 5.6
- Resolution: .35MP (640x480)
- Frame Rate: 30@640x480
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX (Mac software not provided)
Software Specifications:
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Packing List :
- One Binocular Stereo Microscope Body with 2X Objective
- One Top Light
- One Boom Stand
- One Pair of Widefield 10X Eyepiece
- One Pair of Widefield 20X Eyepiece
- One Dust Cover
- One Pair of Eye-guard
- User's Manual Download
- One 1MP USB2.0 Digital Camera
- One USB Cable
- Shipping Weight: 18 lbs
