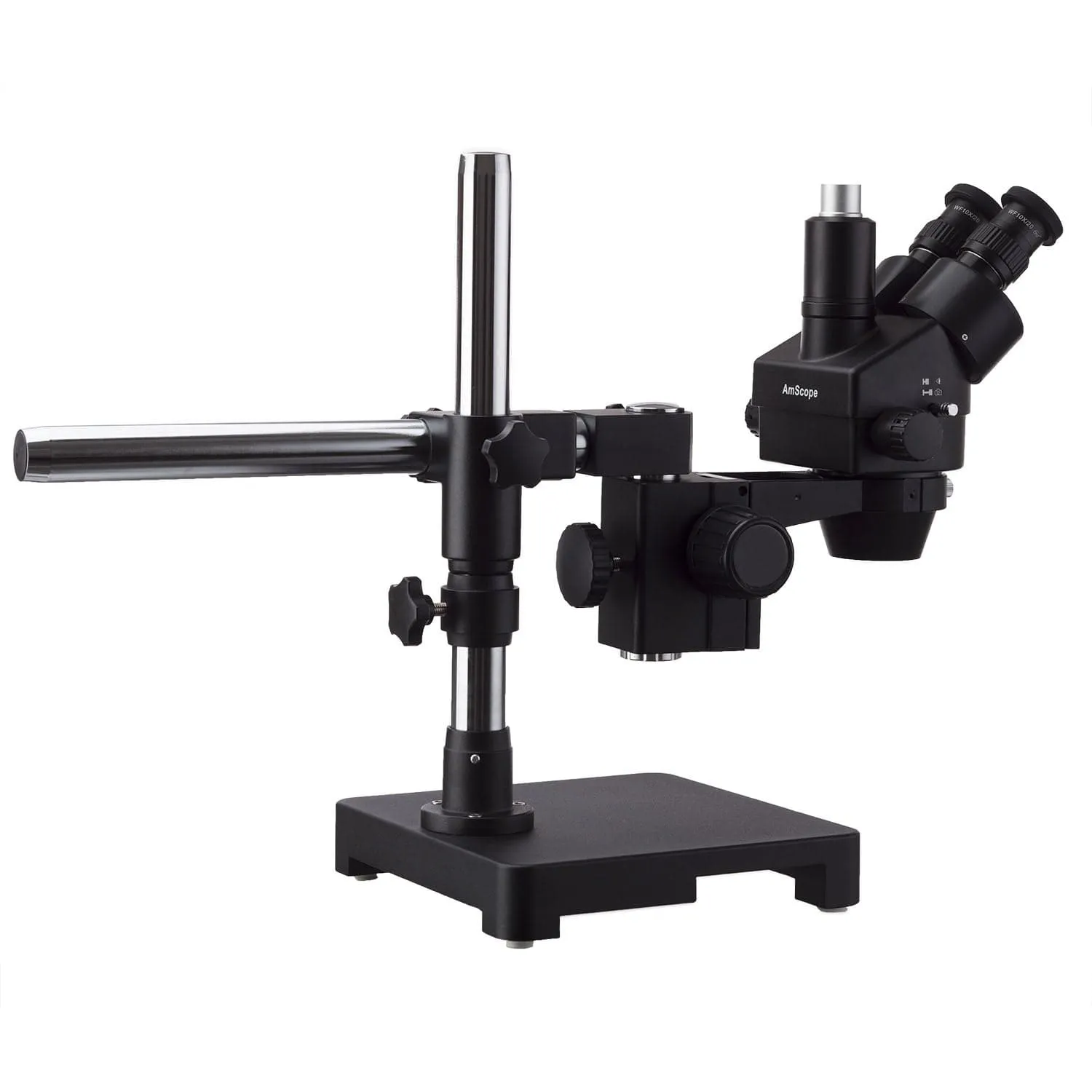

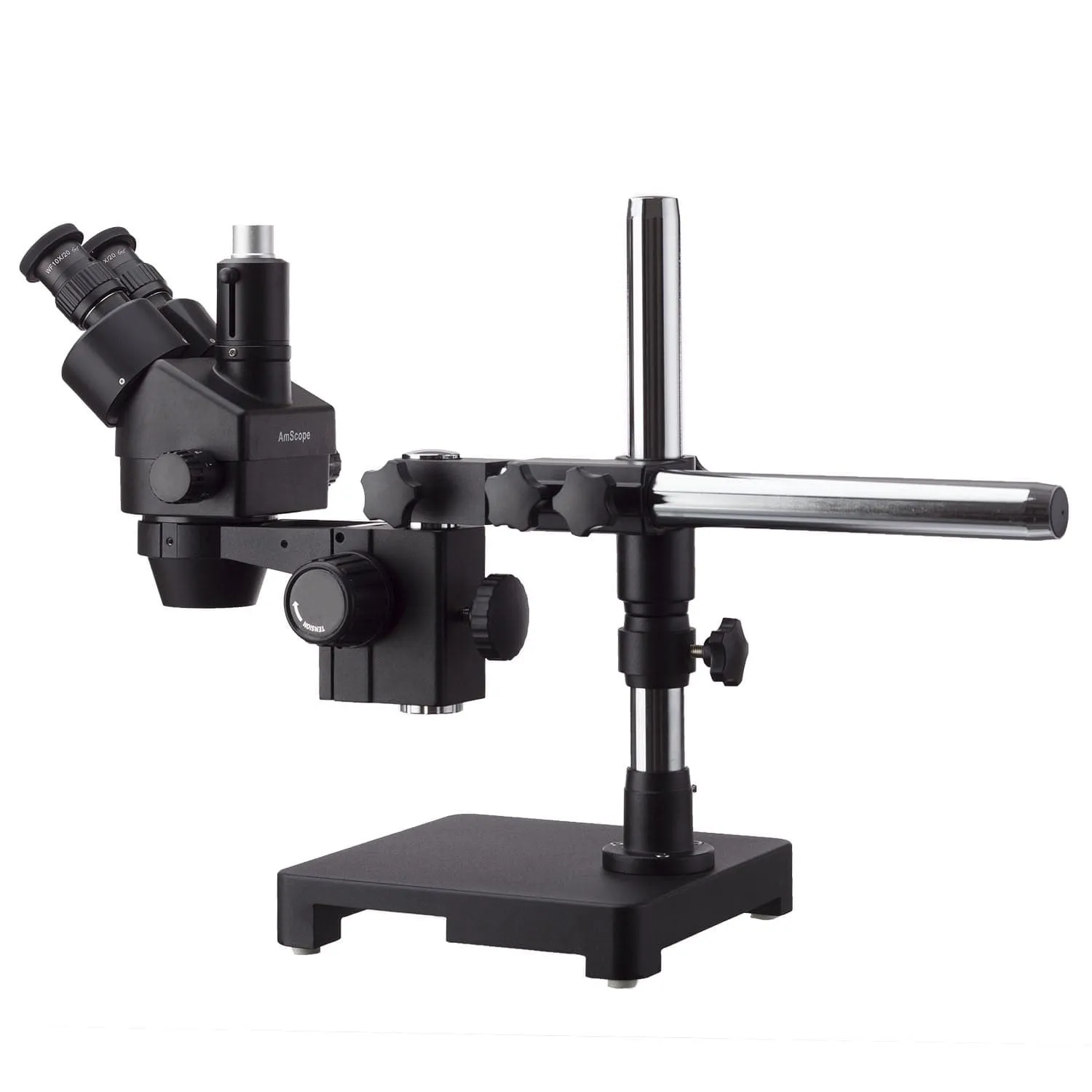

This is a black version of our popular 3.5X-180X zoom stereo microscope mounted on a single-arm boom stand. It comes with a trinocular head with super widefield optics, 10X & 20X eyepieces, for a zoom ratio of 52:1, a sturdy single-arm boom-stand, and a 12 watt fluorescent ring light. The trinocular port enables to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, allowing you to point microscope head in various directions. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.

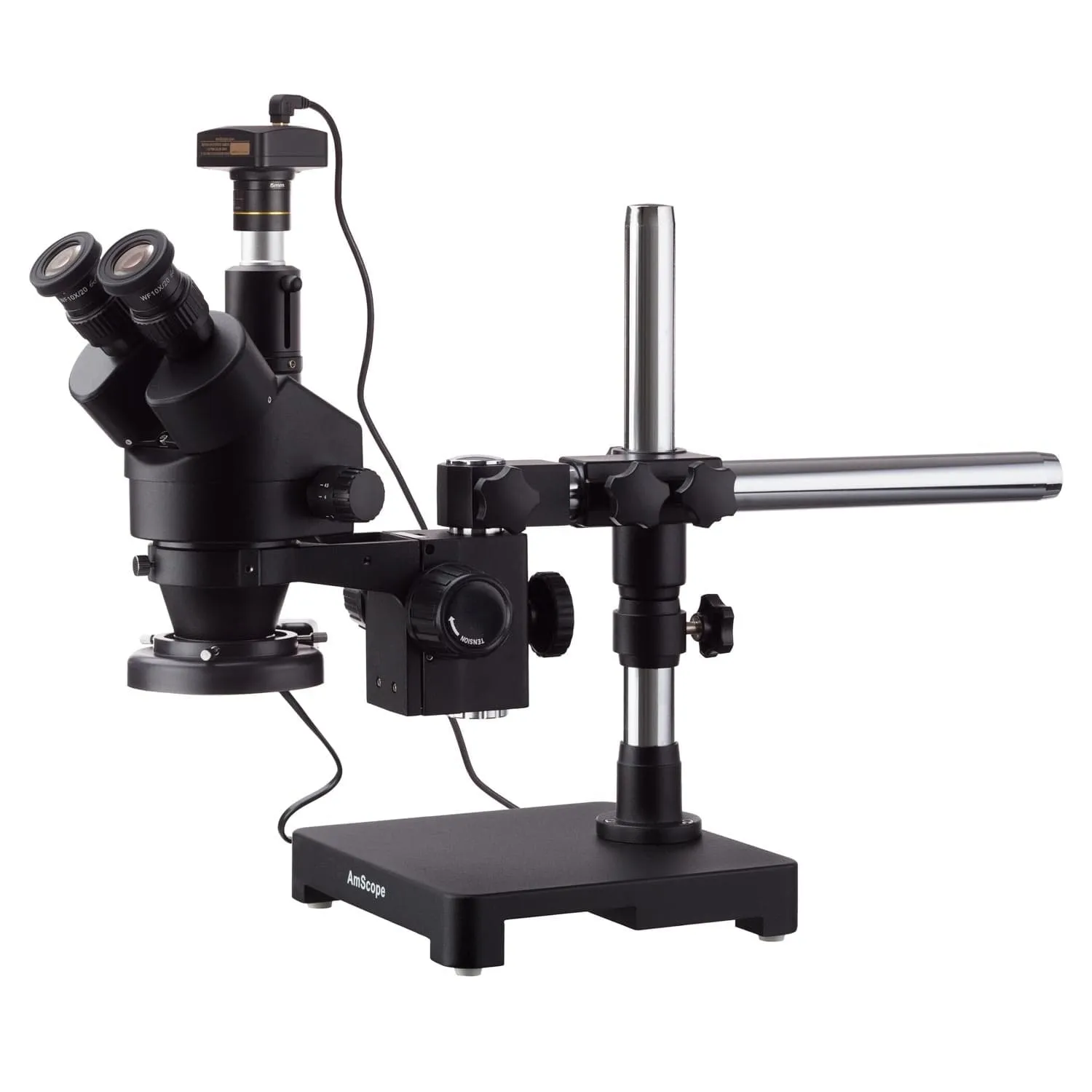

The 5MP USB2.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features
Features:
3.5X-180X Zoom Stereo Microscope with Super Widefield Optics Trinocular Design for High Quality Photographs or Video 30mm Super Widefield 10X Eyepieces with 20mm Field of View & WF20X 8 inch (200mm) Large Working Distance 45 Degree Inclined Trinocular Head Sharp Stereo Erect Images over a Wide Field View Crystal Clear Original True Color Images High Resolution with Great Flatness and Contrast Eye Tube with Adjustable Diopter Adjustable Interpupillary Distance High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation Rubber Eyeguards Providing Further Comfort Full Optical Glass Elements Precise Ground Glass Lens Sturdy Boom Stand for Versatility and Large Working Area Stand Finished with Stain Resistant Enamel 1.5" Rugged Solid Cast Metal Stand Base All Metal Mechanical Components Manufactured under ISO 9001 Quality Control Standard Excellent Five (5) Year Manufacturer Warranty Specifications:
Head: 45 degree inclined 360 degree swiveling trinocular Eyepiece: 30mm super widefield high-eyepoint WF10X/20 & WF20X Objective: 0.7-4.5X Zoom Ratio: 52:1 Maximum Field of View: 2-1/2" (65mm) Minimum Field of View: 3/16" (4.75mm) Diopter Adjustment: /-5dp Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm) Working Distance: 8" (200mm) Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base Power Input: 110VSoftware Specifications:
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8 , Linux kernel 3.13 Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0Camera Specifications:
Sensor: Aptina MT9P001Sensor Type: CMOSSensor Size: 5.7x4.28mmPixel Size: 2.2Resolution: 5.1MPFrame Rate: 5@2592x1944, 18@1280x960, 60@640x480Sensitivity: 0.53 V/lux-secCompatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, LinuxPacking List :
One Trinocular Stereo Zoom HeadOne Pair of Super Widefield 10X EyepiecesOne Pair of Super Widefield 20X EyepiecesOne 0.5X Barlow LensOne 2.0X Barlow LensOne Single-Arm Boom-Stand One Focus RackOne Pair of Eye-Guards One Fluorescent Ring Light Mounting AdapterOne 5MP USB2.0 Microscope Digital Camera with Reduction LensOne 6' USB CableTwo Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)User's Manual Download
