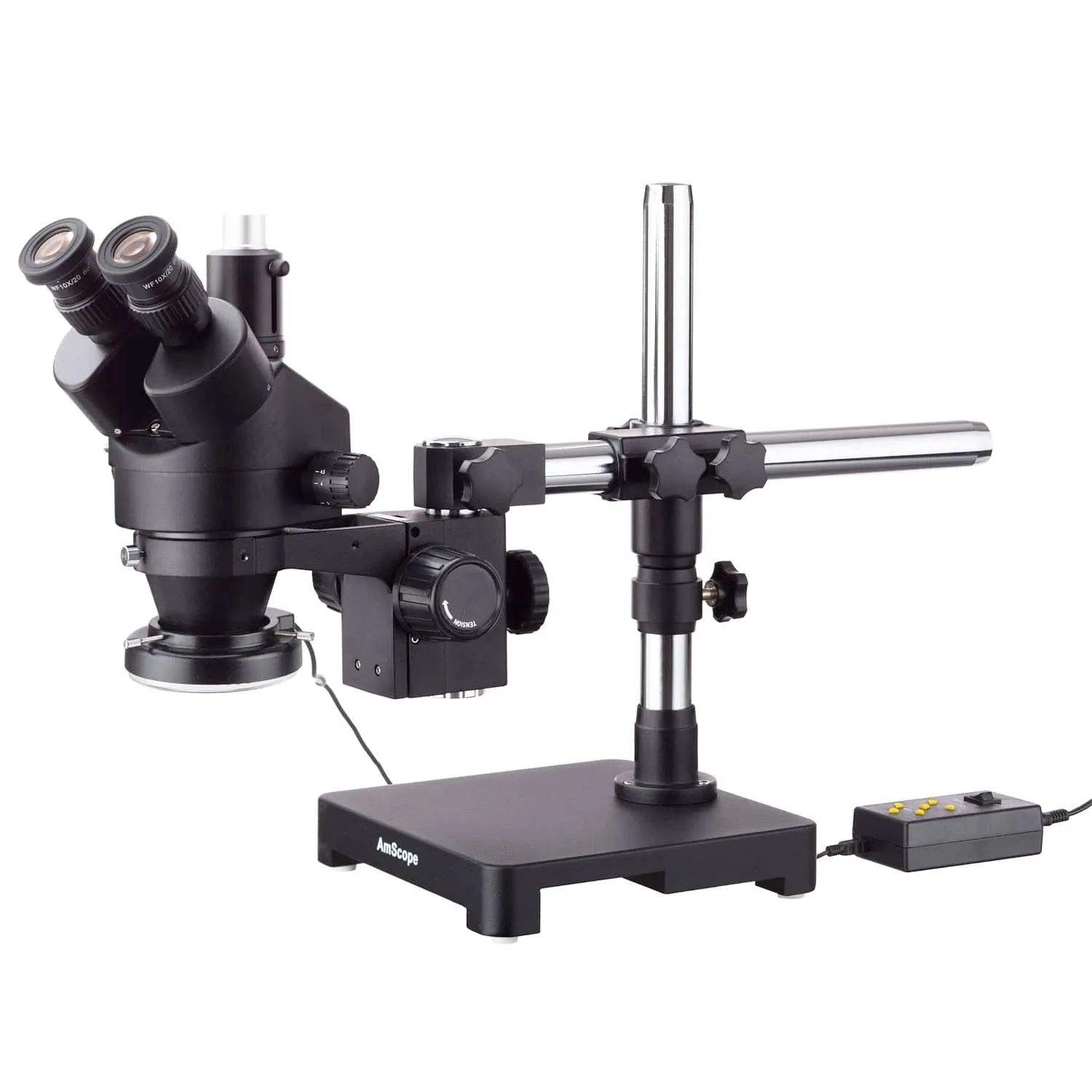

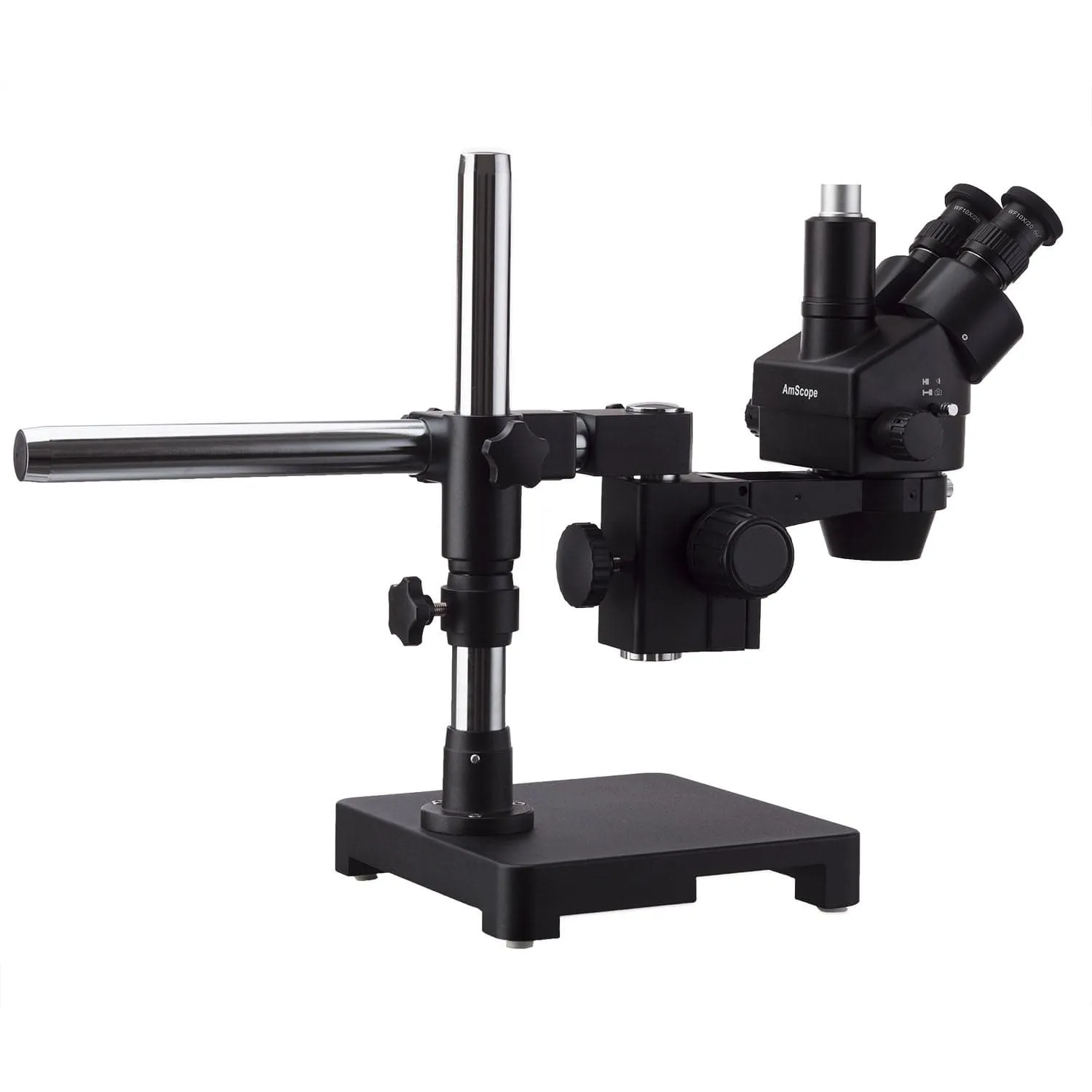

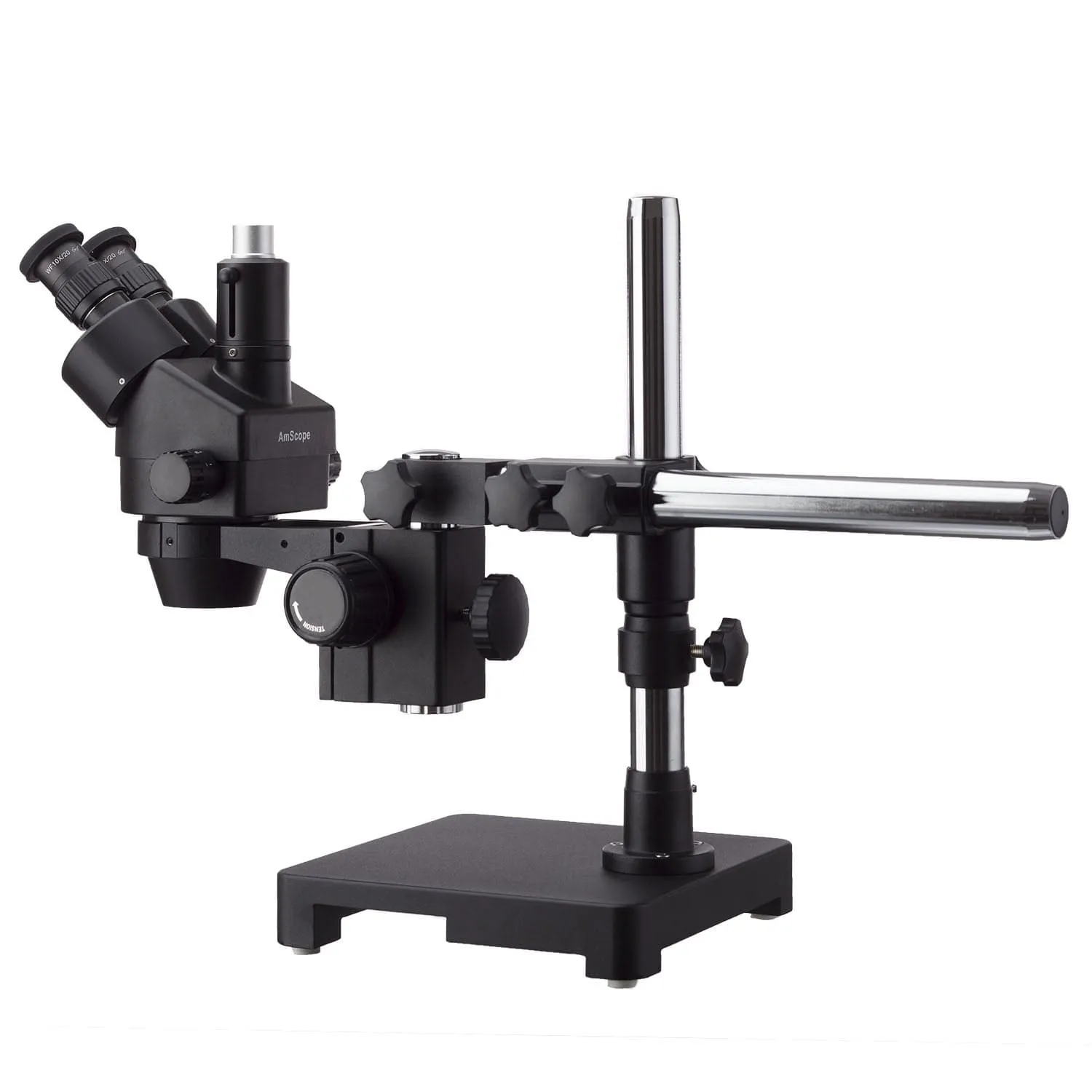

This is a black version of our popular 3.5X-90X zoom stereo microscope mounted on a single-arm boom stand. It comes with a trinocular head with super widefield optics, 10X eyepieces, for a zoom ratio of 26:1, and a sturdy single-arm boom-stand. The 144-LED ring light is lighting-direction changeable and lighting-intensity adjustable, providing cool, even and bright LED illumination. It features a separate control box allowing you to turn on/off each portion of the 4 light zones individually as well as changing the lighting direction so you may obtain the best images for your stereo microscope.. The trinocular port enables to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, allowing you to point microscope head in various directions. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.
Features:
3.5X-90X Zoom Stereo Microscope with Super Widefield Optics
Trinocular Design for High Quality Photographs or Video
30mm Super Widefield 10X Eyepieces with 20mm Field of View
8 inch (200mm) Large Working Distance
45 Degree Inclined Trinocular Head
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
High Resolution with Great Flatness and Contrast
Eye Tube with Adjustable Diopter
Adjustable Interpupillary Distance
High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers
Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation
Rubber Eyeguards Providing Further Comfort
Full Optical Glass Elements
Precise Ground Glass Lens
Sturdy Boom Stand for Versatility and Large Working Area
Stand Finished with Stain Resistant Enamel
1.5" Rugged Solid Cast Metal Stand Base
An ideal stereo inspection microscope with variable 144-LED ring light
Intensity-adjustable and direction-adjustable bright LED cool light illumination
All Metal Mechanical Components
Manufactured under ISO 9001 Quality Control Standard
Excellent Five (5) Year Manufacturer Warranty
Specifications:
Head: 45 degree inclined 360 degree swiveling trinocular
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Ratio: 26:1
Maximum Field of View: 2-1/2" (65mm)
Minimum Field of View: 3/16" (4.75mm)
Diopter Adjustment: /-5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Working Distance: 8" (200mm)
Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
Illumination: 144 white LEDs
Power input: 110-240V, 50-60HZ, Automatic Switching
Packing List :
One Trinocular Stereo Zoom Head
One Pair of Super Widefield 10X Eyepieces
One 0.5X Barlow Lens
One 2.0X Barlow Lens
One Single-Arm Boom-Stand
One Focus Rack
One Pair of Eye-Guards
One 4-zone 144-LED Ring Light with Control Box
User's Manual Download
