Name: AmScope SM-4 Series Zoom Binocular Stereo Microscope 7X-45X Magnification with 30W LED Fiber Optic Ring Light on Double Arm Boom Stand
SKU: 282512

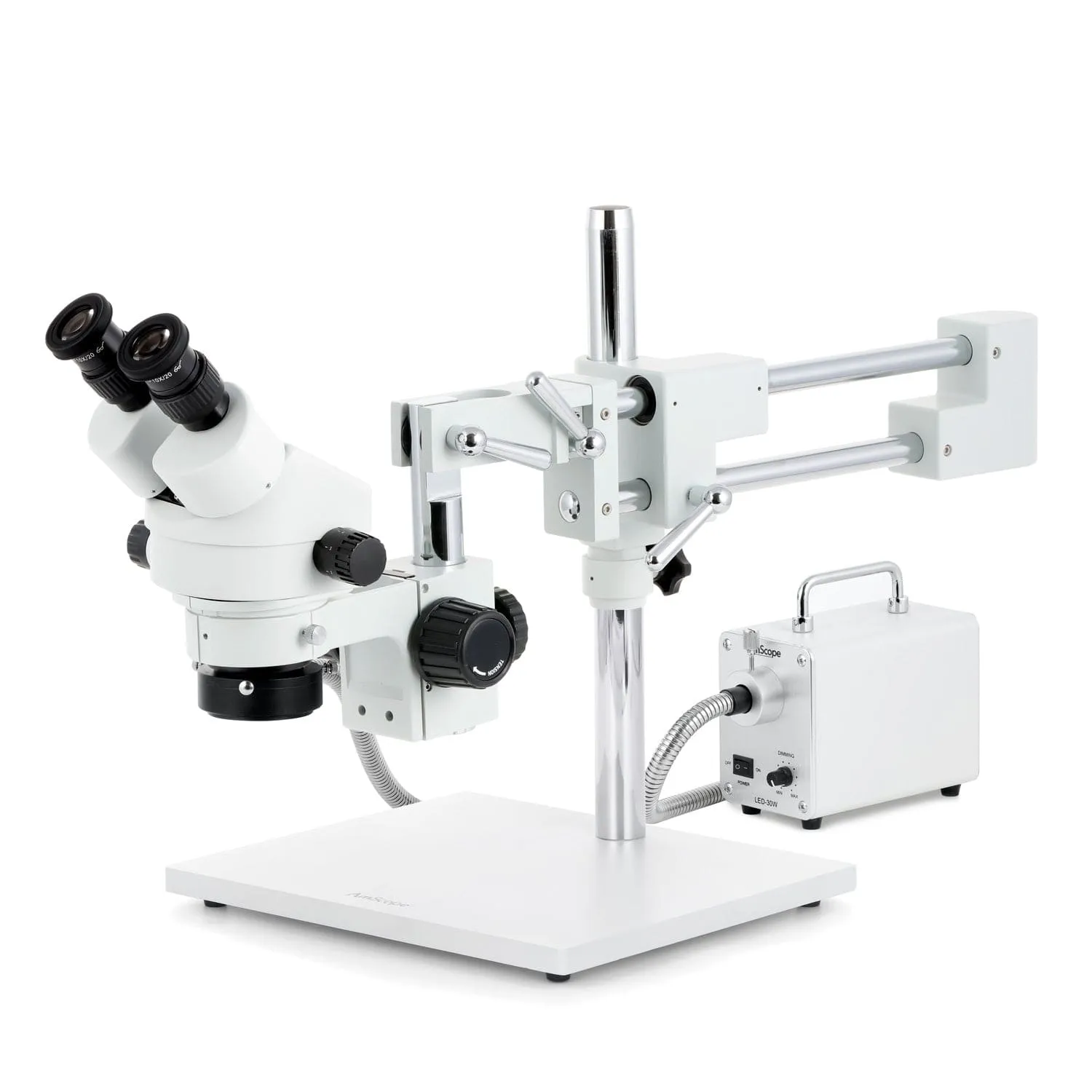

This stereo industrial inspection microscopy system includes a binocular 7X-45X zoom microscope head, a double-arm boom and a 30 Watt LED fiber-optic ring illuminator. It is a perfect inspection viewing system offering sharp crystal clear images. With 30mm super widefield high-eyepoint eyepieces, the microscope offers a superb field of view. The double-arm boom stand allows you to turn the microscope head around three different axes (x, y and z); that is, you can point the microscope head in any directions you wish. The illuminator comes with a highly-flexible 35"-long metal-sheathed fiber-optic cable, and provides bright and cool lighting. This inspection-microscopy system is great for both industrial and biological applications. It is an ideal instrument for research labs, gemologists, and anyone in the semiconductor and electronic industries.

Features :

A turnkey package of inspection microscope with Fiber Optic Ring Light
High quality binocular zoom head offering crystal clear stereo images
7X-45X extremely large zoom magnification range

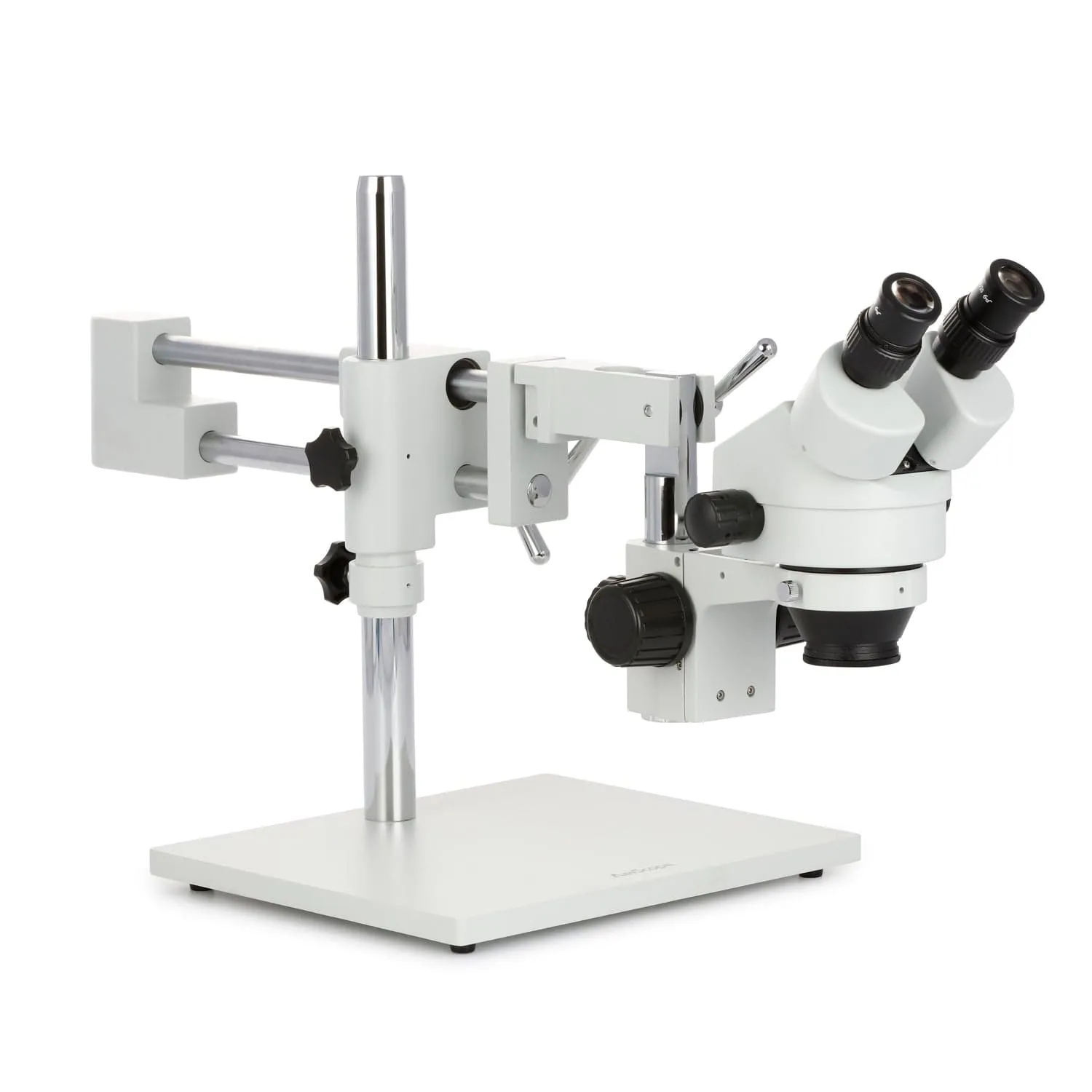

Versatile double-arm boom stand covering large working area
Turning microscope head around three different axis (x, y, and z)
Allowing you to point microscope head in ANY direction you wish
45° inclined binocular head with SUPER widefield high-eyepoint eyepieces
SUPER widefield 30mm WF10X/20 eyepieces (10X power with 20mm field of view - see the difference in the above picture)
High resolution optical system with great flatness and contrast
Sharp stereo erect images over a wide field of view
Original true color microscopy images
Dual eye tubes with adjustable diopter
Extremely large working distance up to 4" (100mm)
Sturdy cast metal boom stand finished with stain-resistant enamel
Accurate alignment ensuring a fatigue-free long hour view
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye guards included
30 watt LED fiber-optic light source with variable intensity
Built-in Heat Filter
Radiator and cooling space allows no cooling off time after use
6400 Degrees Kelvin Lamp Color Temperature
Manufactured under ISO 9001 quality control standard
Excellent five (5) year manufacturer warranty
One (1) year warranty for electrical accessories

Specifications :

Head: 45° inclined 360° swiveling binocular
Eyepieces: 30mm SUPER widefield high-eyepoint WF10X eyepieces with 20mm field of view
Objective: 0.7-4.5X
Diopter Adjustment: ±5dp
Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
Working Distance: up to 4" (100mm)
Boom Stand: Boom Stand: 20" double arms (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
Fiber Optic 30 Watt LED Light Source with Variable Intensity
Power Supply: 100-240V AC to 12V DC adapter
